A customizable cutting solution

The Kongsberg X cutting table is easily the most versatile digital finishing device on the market. With Kongsberg X, you can invest in the tools you need today, with the confidence that you will be able to upgrade as your business grows. You can add new tools for new materials, new applications, or more capacity so that you can add volume and enter new market segments.

Whether you produce 2D signs, 3D displays or packages; regardless of the material you work with, the Kongsberg X cutting table will meet the challenge. The application kits for the Kongsberg X (Short Run, Production and Flexo) make it easy to pick the right configuration for your business. Additionally, the freedom of upgrade options make the possibilities almost limitless.

Kongsberg X Edge owners can upgrade to the Kongsberg X at any time, see below for for table sizes and specifications.

SHORT RUN

  • For sample making, short run production and other packaging-related tasks
  • Production on a wide range of materials, with fewer manual tool changes
  • Extra fast tool loading, auto recognition and calibration
  • Available with felt or PVC underlay

PRODUCTION

  • For signage, packaging or display production
  • Ability to add a conveyor system to support automated board & roll feeding
  • A variety of milling options to match your throughput requirements
  • Perfect print-to-cut registration, even in cases of heavy distortion and jobs longer than the table

FLEXO

  • Cutting of flexo plates and patches
  • Operates back to back with your imaging device, physically and digitally
  • Fits in a truly tailored workflow defined together with Esko’s Digital Flexo team
  • Can also be equipped to produce dedicated shipping boxes for your finished plates

Sizing Chart

X20X22X24X44X46X48
Work area, all tools1680 x 1270
66 x 50
1680 x 2190
66 x 86
1680 x 3200
66 x 126
2210 x 3200
87 x 126
2210 x 4800
87 x 189
2210 x 6550
87 x 258
mm in.
Max. material size1740 x 1750
68 x 69
1740 x 2570
68 x 101
1740 x 3575
68 x 140
2270 x 3575
89 x 140
2270 x 5250
89 x 206
2270 x 6930
89 x 273
mm in.
Max. material width w/ conveyor system1680
66
1680
66
1680
66
2210
87
2210
87
N/Amm in.
Overall dimensions w/ front panel2780 x 2450
109½ x 96½
2780 x 3040
109½ x 119½
2780 x 4050
109½ x 159½
3300 x 4050
130 x 159½
N/AN/Amm in.
Overall dimensions w/ RWS (1)(2)3600 x 2160
141¾ x 85
3600 x 2950
141¾ x 116
3600 x 3960
141¾ x 156
4070 x 3960
160¼ x 156
4070 x 5640
160¼ x 222
4070 x 7320
160¼ x 288¼
mm in.
Weight455
1000
525
1150
630
1390
815
1800
1150
2540
1485
3270
kg lbs
Position accuracy (3)±200
±.0078
±200
±.0078
±250
±.0098
±300
±.012
±350
±.014
±400
±.016
µm in.
Repeatability±50
±.0019
±50
±.0019
±50
±.0019
± 60
± .0023
± 60
± .0023
± 60
± .0023
µm in.
Maximum speedKongsberg X Edge: 30 m/min – 20 in/sec Kongsberg X: 50 m/min – 33 in/sec
Max. acceleration Kongsberg X Edge3 m/s2 - 0.3 G
Max. acceleration Kongsberg X (4)5.6 m/s2 - 0.56 G5.6 m/s2 - 0.56 G5.6 m/s2 - 0.56 G5.4 m/s² - 0.54 G5.4 m/s² - 0.54 G5.4 m/s² - 0.54 G--
Vertical tool forceStandard tool stations: 220 N. PowerHead crease station: 500 N
No. of vacuum sections224444
Standard traverse clearance (5)50 mm – 2” or 95 mm – 3 ¾”, depending on Application Kit and model size
Optional traverse clearance (5)High clearance 95 mm – 3 ¾”, available for models with 50 mm – 2” clearance as standard
(1) Measured with revolving workstation in its standard position
(2) Conveyor feed option will add marginally to the length dimension
(3) Applies across total work area, with standard traverse clearance
(4) May be reduced with certain tool- and configuration combinations
(5) Measured without cutting underlay. Max. cutting thickness is tool dependent.

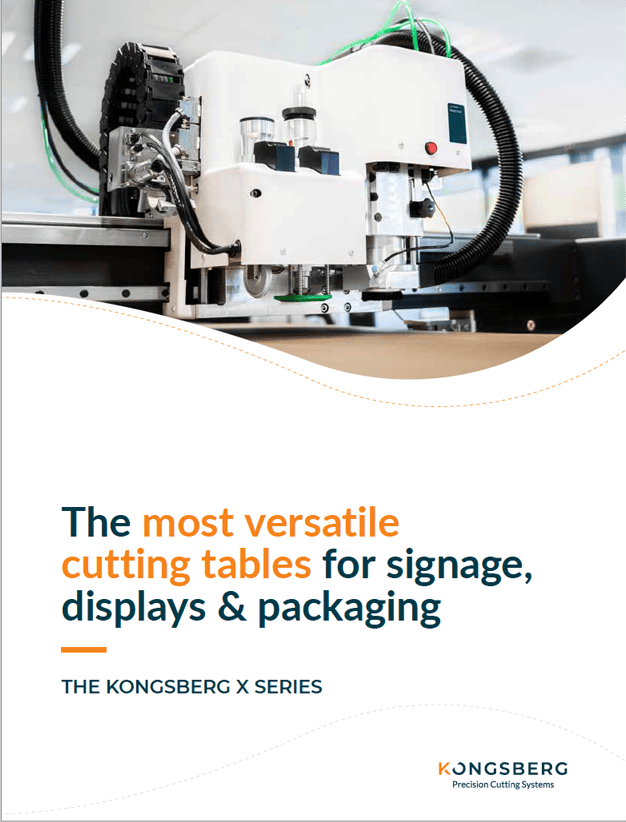

Download Brochure
