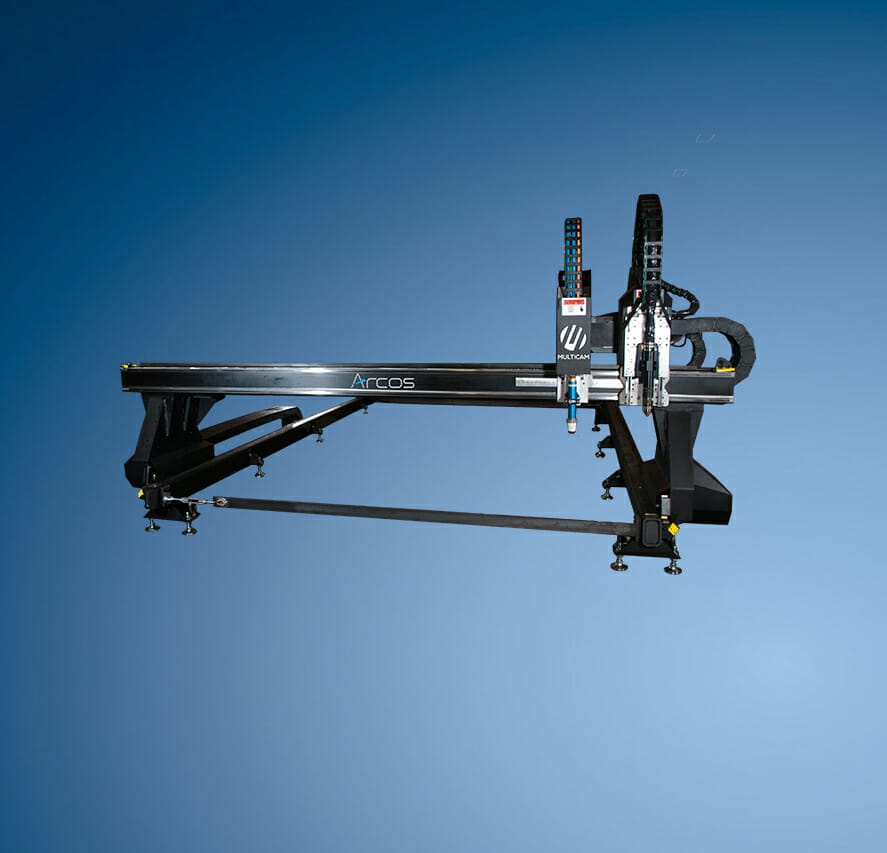

(3000) ARCOS bridge & rail cnc plasma

Low cost solution for high manufacturing demand


The Arcos is designed for manufacturers who need to cut heavy plate or need a large processing area without sacrificing accuracy or cut quality. Arcos is a complete ground up design with the latest power supplies from Hypertherm and the latest automatic oxy fuel system from IHT. A well balanced design with a low profile while maintaining a whopping 8 ft. of cut clearance giving it a low center of gravity for optimal motion at 50% higher speeds and 200% faster accelerations than previous models.

The Arcos Bridge & Rail CNC Plasma Cutter is a host to multiple features, you simply can’t go wrong when it comes to this fabrication machine! This system features an integrated material database so you can simply use a menu-drive system to adjust feed rate, pierce-delay, pierce-height, and many other options automatically.

The Arcos system from MultiCam touts best in class motion for ultra-smooth cuts, while utilizing all the latest process control libraries from valuable partners like Hypertherm and IHT

  • Steel
  • Stainless Steel
  • Aluminum
  • Brass
  • Diamond plate
  • Expanded metal
  • Bronze
  • Copper
  • Galvanized metal
  • Machine manufacturing
  • Armored vehicles
  • Automotive fabrication
  • Construction
  • Decorative fencing
  • Job shops
  • Structural steel
  • Marine fabrication
  • Oil field equipment
  • Sign making
  • Metal fabrication
  • HVAC
  • All-steel-stress relieved heavy-duty
  • High Torque, low backlash gearboxes
  • EZ-Control and Coreo Software
  • Digital Servo drive and brushless digital AC motors
  • Quick-Stop Crash Protection
  • Oxy Fuel Torch (option)
  • Z-Axis clearance: 38.5”
  • Z-Axis travel: 12”
  • Rapid traverse: 2,546 IPM
  • Repeatability: +/- 0.001”
  • Drive system X and Y axis:Helical rack and pinion
  • Drive system Z axis: balls screw
FILL OUT YOUR DETAILS BELOW TO GET IMMEDIATE ACCESS TO the 3000 series arcos bridge and rail
cnc plasma BROCHURE


Optimized productivity, lower operating costs:

Every MultiCam 3000 series CNC Plasma bridge and rail series is equipped with a Hypertherm XPR Plasma cutting system. These systems achieve impressive cut speeds, consistent cut quality and exceptional consumable life. MultiCam’s 3000 series CNC Plasma bridge and rail with fume evacuation tables use Hypertherm XPR plasma cutting systems to provide a wide cutting capacity on metals including aluminum and mild steel.

Powermax advantages:

  • Improves cut quality and consistency on mild steel
  • Ensures superior stainless steel cut quality across all thickness ranges
  • Extends Hypertherm’s HyDefinition® process to deliver cleaner, sharper, more consistent edge quality on stainless steel and aluminum
  • Dramatic improvement in consumable life on mild steel applications
