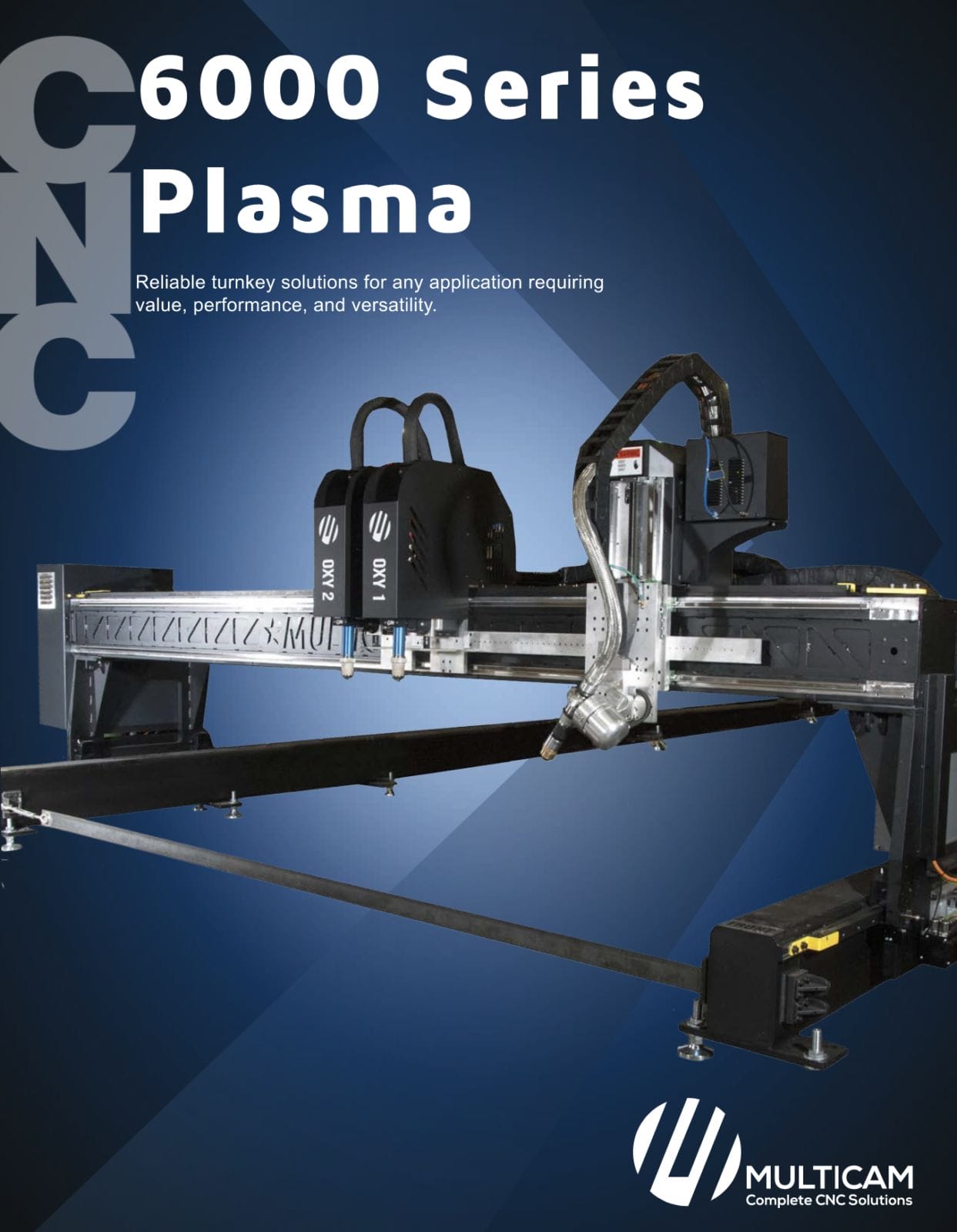

6000 series cnc plasma bridge and rail

Easy Operation and Steadfast Reliability That Keeps Your Production High

AVERAGE TURNKEY PACKAGE: $180,000-300,000 CAD

The 6000 Series CNC Plasma Table is designed specifically for manufacturers who need to cut heavy plate or want a large process area. But, you don’t have to sacrifice cut accuracy or quality!

With a motion platform independent of the cutting surface, the 6000 Series does not experience damage from materials being loaded or from intense heat caused by oxyfuel cutting. Customers report increasing their production capacity by being able to run the 6000 Series CNC Plasma Table for 19 hours per day, up to 6 days per week.

With the 6000 Series CNC Plasma Table, you simply can’t beat the number of features you get to help you make precision cuts. To increase your productivity, the 6000 Series CNC Plasma Table includes an integrated material database. So, instead of changing feed rate, pierce delay, pierce height, and many other options when you change the material, you simply use a menu-drive system that adjusts most of these settings automatically.

You also get an extremely rigid base that reduces vibration and keeps your cutting quality high. Finally, the gantry is made from 1.5” steel plate, which also helps reduce vibration and improves cutting quality even further


MATERIALS CUT
  • Steel
  • Stainless Steel
  • Aluminum
  • Brass
  • Diamond plate
  • Expanded metal
  • Bronze
  • Copper
  • Galvanized metal
APPLICATIONS
  • HVAC
  • Manufacturing
  • Sign making
  • Metal fabrication
  • Aerospace
  • Automotive fabrication
  • Decorative fencing
  • Marine fabrication
STANDARD FEATURES
  • MultiCam EZ Control® HP4 – 3 axis motion
  • Custom engineered all-steel frame and gantry
  • Hypertherm plasma torch
SPECIFICATIONS
  • Z-axis travel: 10”
  • Cut speed: 500 IPM
  • Rapid traverse: 700 IPM
  • Repeatability: +/- 0.002”
  • Drive system X and Y axis: rack and pinion
  • Repeatability: +/- 0.001”
  • Drive system Z axis: lead screw
  • Quick-stop crash protection
  • 5-Axis plasma head allows for 3-D bevel cutting
  • Additional lengths can be added in 5’ or 10’ sections

FILL OUT YOUR DETAILS BELOW TO GET IMMEDIATE ACCESS TO THE 6000 series cnc plasma bridge and rail BROCHURE

hYPERTHERM XPR PLASMA CUTTING SYSTEM

Optimized productivity, lower operating costs:

Every MultiCam 6000 Series CNC Plasma bridge and rail series is equipped with a Hypertherm XPR Plasma cutting system. These systems achieve impressive cut speeds, consistent cut quality and exceptional consumable life. MultiCam’s 6000 Series CNC Plasma bridge and rail with fume evacuation tables use Hypertherm XPR plasma cutting systems to provide a wide cutting capacity on metals including aluminum and mild steel.

Powermax advantages:

  • Improves cut quality and consistency on mild steel
  • Ensures superior stainless steel cut quality across all thickness ranges
  • Extends Hypertherm’s HyDefinition® process to deliver cleaner, sharper, more consistent edge quality on stainless steel and aluminum
  • Dramatic improvement in consumable life on mild steel applications

Ready to save costs and increase productivity?

CONTACT US
