High performance plasma, entry-level plasma price
AVERAGE TURNKEY PACKAGE: $40,000-55,000 CAD

The 1000 Series CNC Plasma table makes for the perfect fit for businesses that need high performance at an entry-level plasma price. A solid steel frame means the 1000 Series has minimal vibration and excellent precision. The 25 mm linear ball bearing rails increase this stiffness even further.

Automatic tool calibration means you save more time and spend it increasing your productivity by cutting instead of configuring. The precision X-axis two phase high speed stepper motors aid in cutting accurately, and require virtually no maintenance.

The z-screw assembly uses a 1/2” diameter stainless steel lead screw. It’s held in place so it can bear high axial force loads. Lastly, a brass nut helps carry the Z-axis load.

If budget is your concern, you can go with a manual clamping surface in the aluminum t-slot table option. You can also choose medium-pressure phenolic grid tops. Adjustable leveling fleet help you hold your work surface and project stable for precision cutting.

MATERIALS CUT
  • Steel
  • Stainless Steel
  • Aluminum
  • Brass
  • Diamond plate
  • Expanded metal
APPLICATIONS
  • HVAC sheet metal fabrication
  • Custom metal fabrication
  • Sign making
  • Decorative fencing
  • Marine fabrication
  • Burning plate steel
STANDARD FEATURES
  • MultiCam EZ Control®
  • Aluminum extrusion frame
  • High-speed contouring
  • Integrated material database
  • Automatic Torch Height Control
  • Precision dual X-axis drives
  • Unlimited file size transfer
  • High volume fume extraction
SPECIFICATIONS
  • 25mm linear ball bearing profile
  • Z-axis clearance: 4.5”
  • Z-axis travel: 6”
  • Cutting Speed: 800 IPM (20m/min)
  • Cut speed: 800 IPM
  • Rapid traverse: 1,000 IPM
  • Repeatability: +/- 0.001”
  • Drive system X and Y axis: rack and pinion
  • Drive system Z axis: lead screw
  • Hypertherm Power Max or Hypertherm HSD torches
  • MultiCam CNC Knife with optional cutting heads
  • Bar-code scanning interface and 2-D part digitizing

FILL OUT YOUR DETAILS BELOW TO GET IMMEDIATE ACCESS TO THE 1000 series cnc plasma BROCHURE

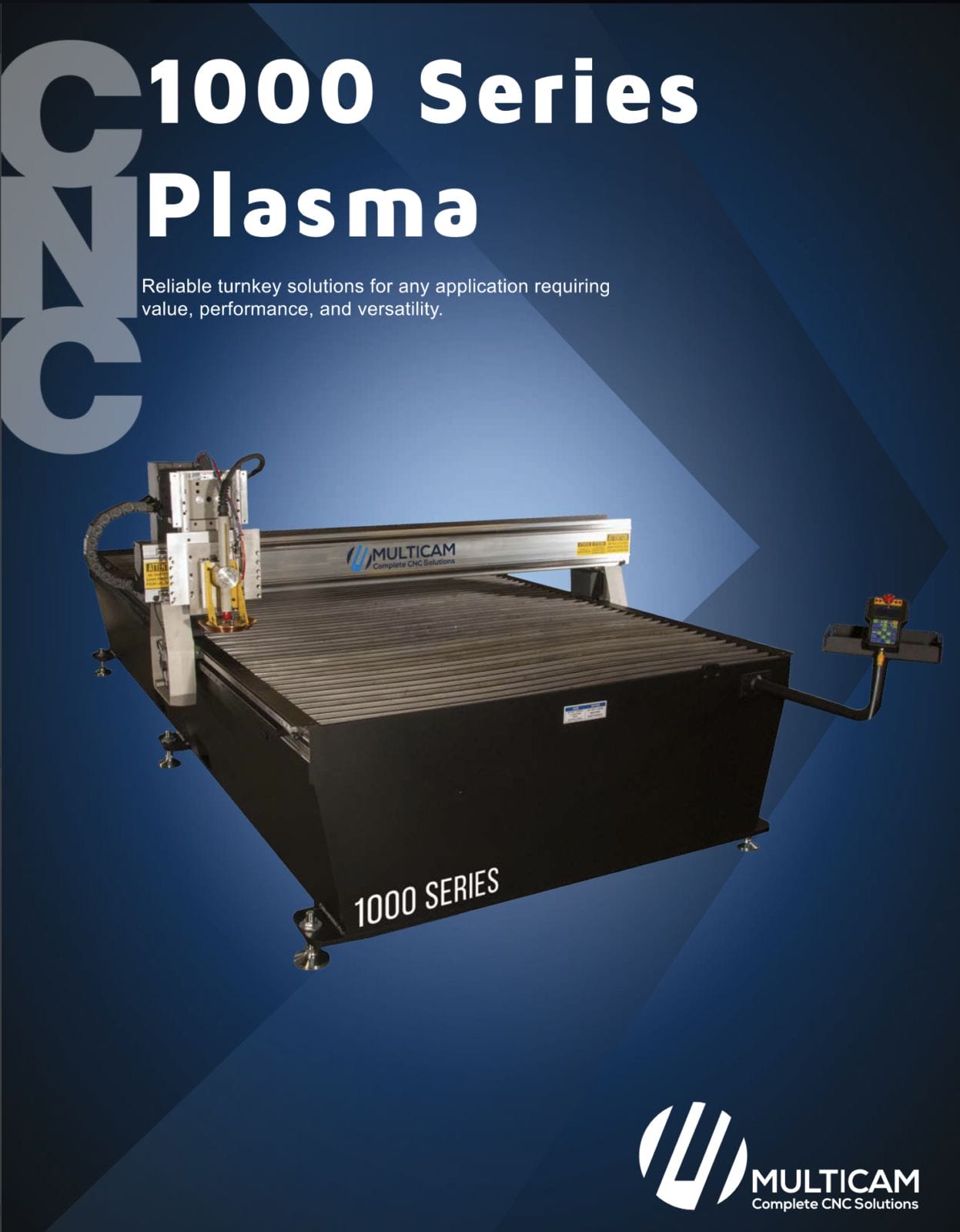

1000 series plasma

bs_pmx45_600x420

hYPERTHERM POWERMAX

Cut metal quickly and cleanly:

Every MultiCam V-Series is equipped with a Hypertherm Plasma cutting system. These systems achieve impressive cut speeds, consistent cut quality and exceptional consumable life. MultiCam V-Series Plasma with fume evacuation tables use Hypertherm torches to provide a wide cutting capacity on metals including aluminum and mild steel.

Powermax advantages:

  • Best performance in its class
  • State-of-the-art consumable technology delivers faster speeds and better cut quality to help you get more done in less time
  • Simple controls and a stable plasma arc make Powermax systems easy to operate, even for beginners
  • Long consumable life and fast cut speeds lower your cutting and gouging costs
